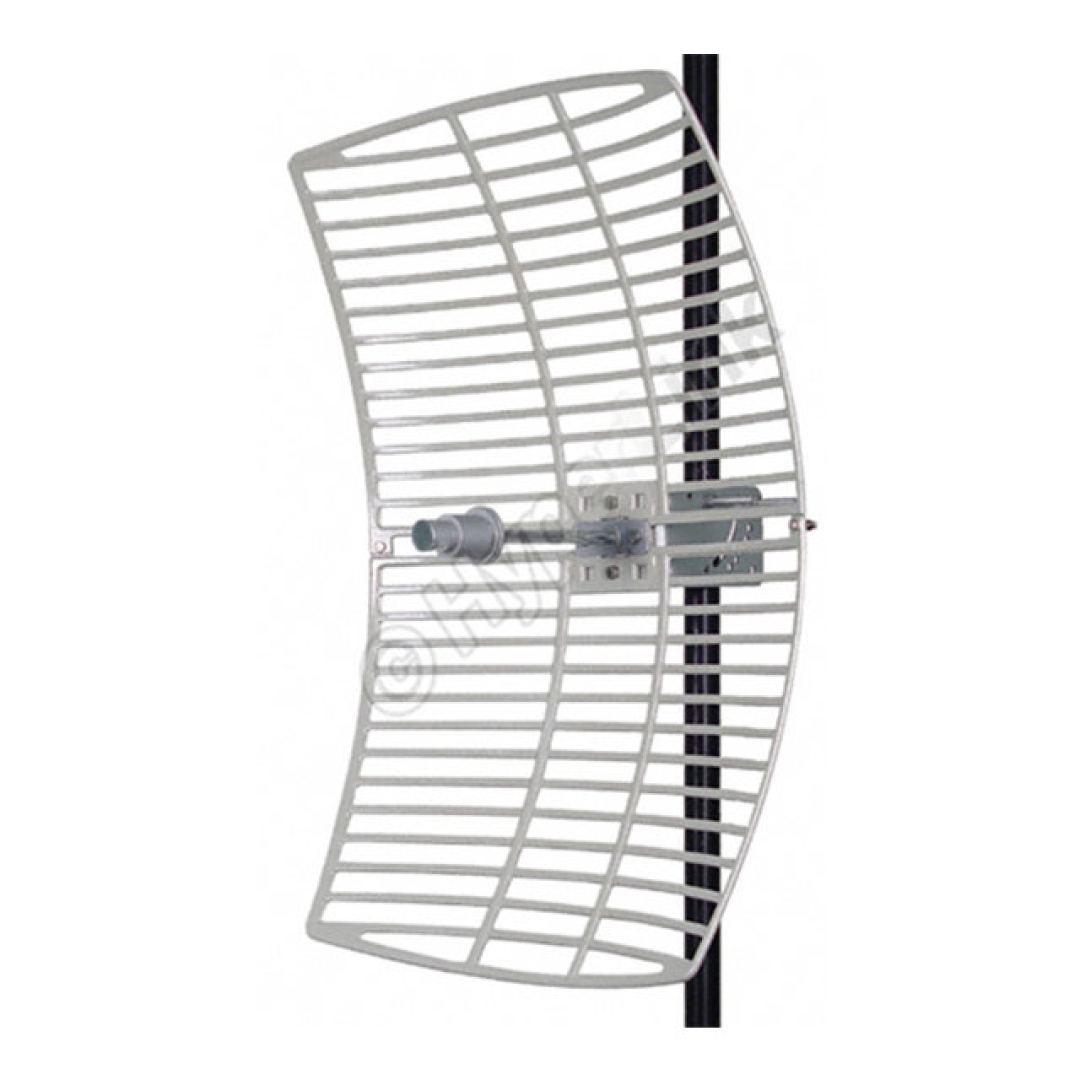

SPECIFICATIONS   FREQUENCY 5470-5725 MHZ GAIN 26 DBI POLARIZATION HORIZONTAL OR VERTICAL HORIZONTAL BEAM WIDTH 6° VERTICAL BEAM WIDTH 9° FRONT TO BACK RATIO 25 DB IMPEDANCE 50 OHM MAX. INPUT POWER 100 WATTS VSWR < 1.5:1 AVG. WEIGHT 5.3 LBS. (2.4 KG) GRID DIMENSIONS 15.7 X 23.6 INCHES (400 X 600 MM) MOUNTING 2 IN. (50.8 MM) DIAMETER MAST MAX. OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) LIGHTING PROTECTION DC SHORT ROHS COMPLIANT YES CONNECTOR N-FEMALE     WIND LOADING DATA WIND SPEED (MPH) LOADING   100 20.0 LB. 120 31.0 LB.     HG5426G ANTENA DIRECIONAL HYPERLINK GRADE 26DBI MAIORES DETALHES DE HG5426G NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG5426G: HG5426G, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, 26DBI, 26 DBI, ANTENA 26DBI, ANTENA 26 DBI
