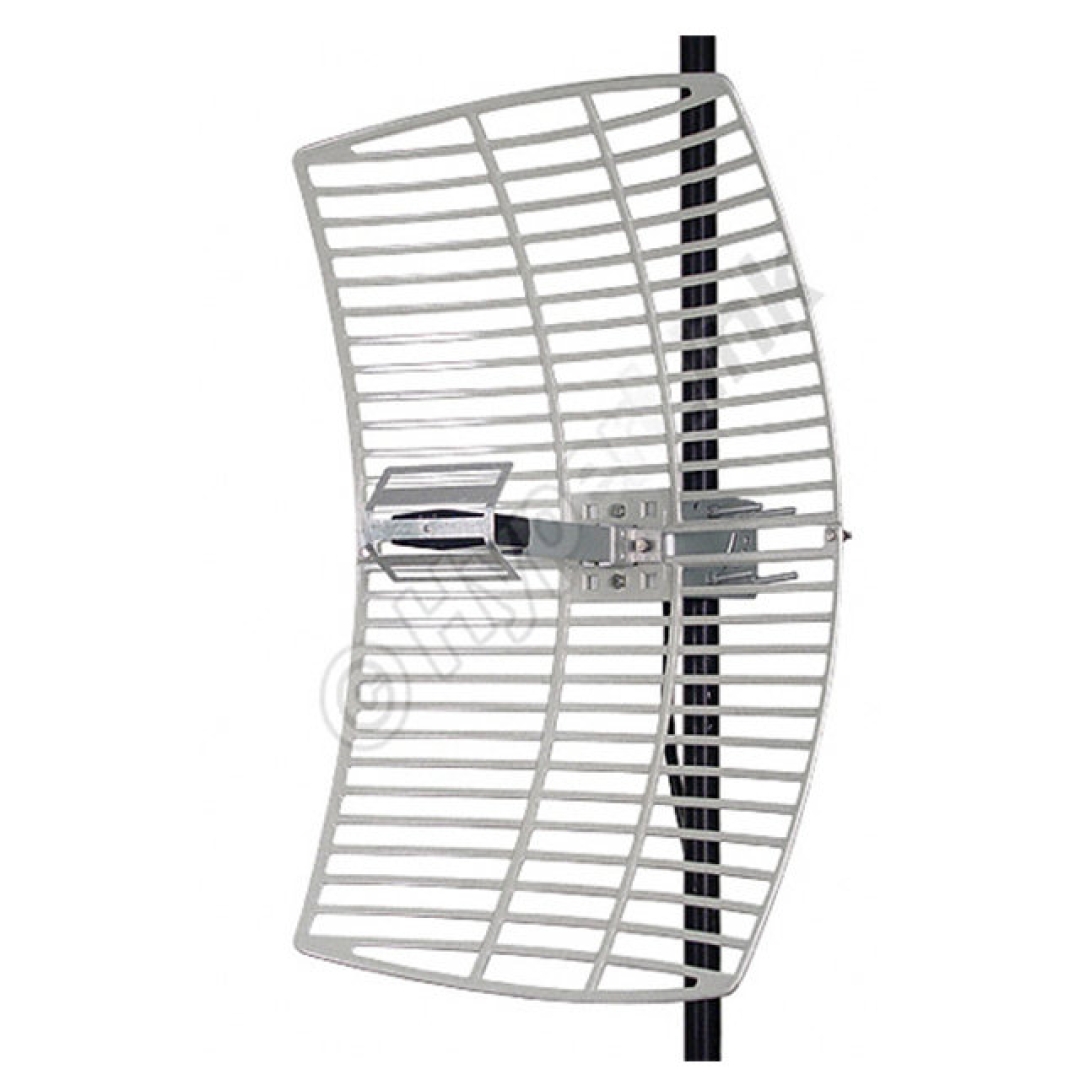

ELECTRICAL SPECIFICATIONS FREQUENCY 2400-2500 MHZ GAIN 19 DBI HORIZONTAL BEAM WIDTH 12° VERTICAL BEAM WIDTH 16° POLARIZATION HORIZONTAL OR VERTICAL FRONT TO BACK RATIO 25 DB IMPEDANCE 50 OHM MAX. INPUT POWER 100 WATTS VSWR < 1.5:1 AVG. LIGHTNING PROTECTION DC SHORT     MECHANICAL SPECIFICATIONS WEIGHT 5.3 LBS. (2.4 KG) GRID DIMENSIONS 15.7" (400 MM) X 23.6" (600 MM) MOUNTING 1.25 IN. THRU 2 IN. (31.8 - 50.8 MM) DIAMETER MAST MAX. ELEVATION ANGLE 0 TO +15° OPERATING TEMPERATURE -40° C TO TO 85° C (-40° F TO 185° F) ROHS COMPLIANT YES     WIND LOADING DATA WIND SPEED (MPH) LOADING   100 20.0 LB. 120 31 LB.     HG2419G-NF ANTENA DIRECIONAL HYPERLINK HG2419G-NF G MAIORES DETALHES DE HG2419G-NF NO SITE DO FABRICANTE: HTTP://WWW.HYPERLINKTECH.COM TAGS DE HG2419G-NF: HG2419G-NF, EQUIPAMENTOS WIRELESS, ANTENAS, HYPERLINK TECHNOLOGIES, 19 DBI, 19DBI, ANTENA 19DBI, ANTENA 19 DBI
